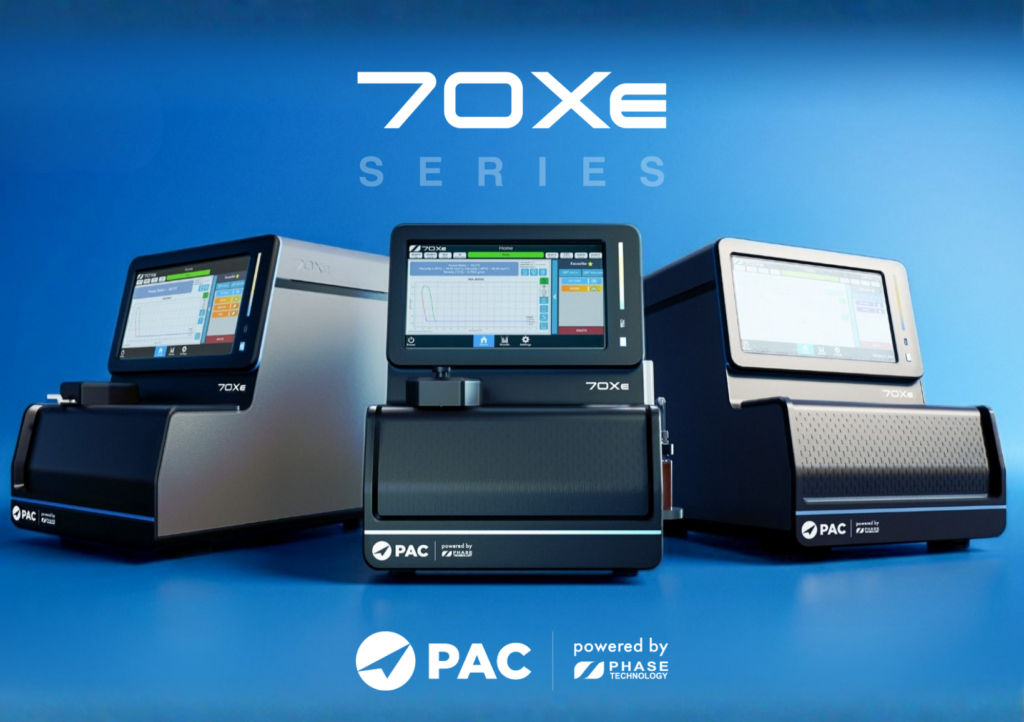

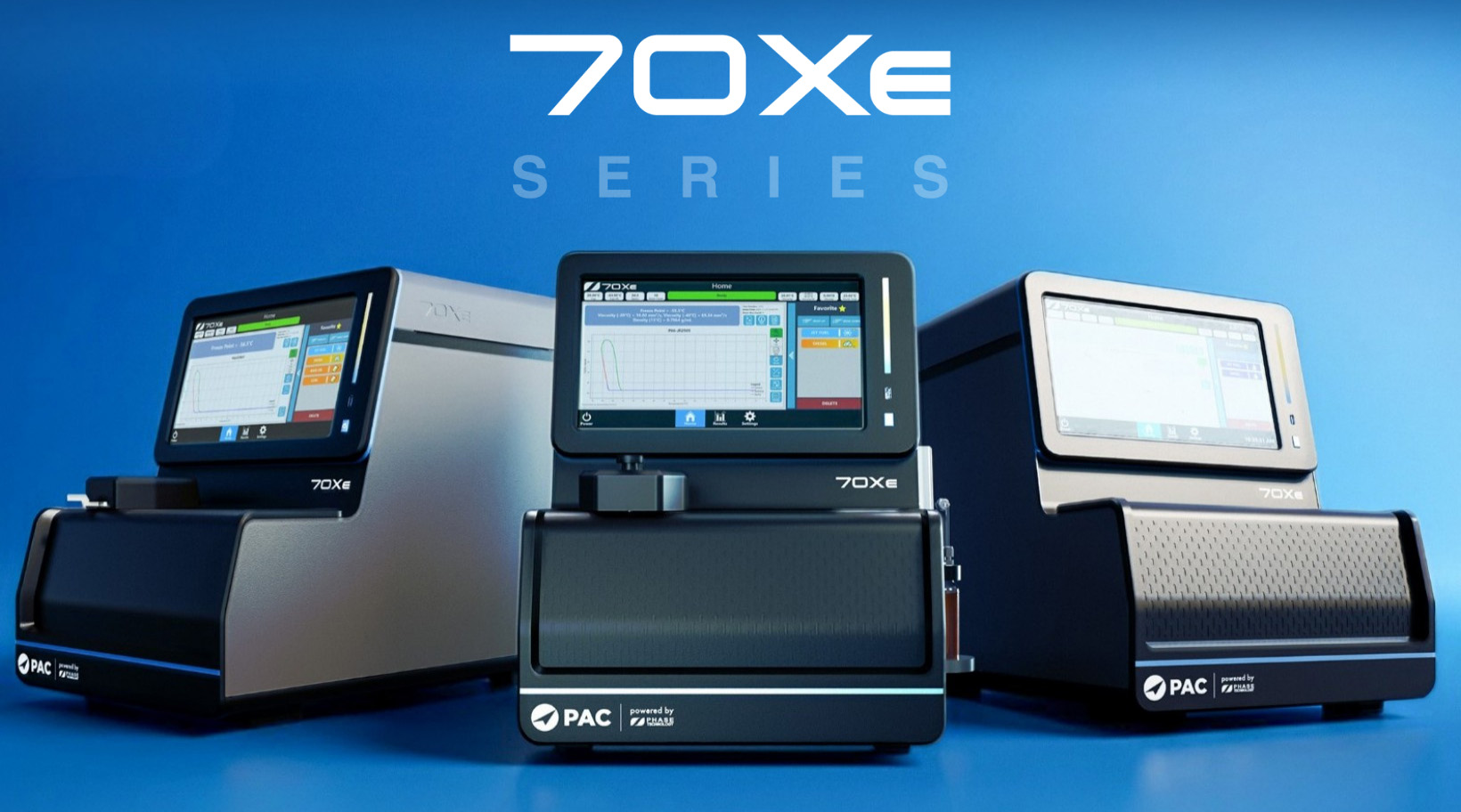

70Xe
Series
The World’s First Integrated Analyzer Platform for Jet Fuels and Diesels Testing
The 70Xe Series Analyzers represent the next evolution in fuel property testing. Designed to consolidate critical flow and cold property measurements into a single, integrated platform, the 70Xe enables faster testing, higher precision, and more efficient use of laboratory space.
From conventional fuels to next-generation renewable and sustainable fuels, the 70Xe platform is built to meet today’s and tomorrow’s testing demands.
From dedicated viscosity and density testing to complete flow properties testing – experience the multi-function performance of up to six integrated measurements in one analyzer.
The 70Xe Series sets a new benchmark in cold-flow analysis with a redesigned cooling system capable of reaching –100 °C and below, expanding testing capabilities for sustainable aviation fuels and renewable diesels. Purpose-built models support SAF, renewable diesel, biodiesel, and feedstock testing, including compliance as the referee freezing point method for co-processed SAF.
Reliable, versatile, and method-compliant, 70Xe delivers a future-ready solution for evolving fuel standards.
The 70Xe Series sets a new benchmark in cold-flow analysis with a redesigned cooling system capable of reaching –100 °C and below, expanding testing capabilities for sustainable aviation fuels and renewable diesels. Purpose-built models support SAF, renewable diesel, biodiesel, and feedstock testing, including compliance as the referee freezing point method for co-processed SAF.
Reliable, versatile, and method-compliant, 70Xe delivers a future-ready solution for evolving fuel standards.
Flexible configuration up to six functions in one analyzer
Advanced cooling system enables renewable fuels testing to −100 °C and below
Intuitive redesigned interface for faster training and operation
Phase plots for visualizing sample behavior
Self-contained system with no external chiller

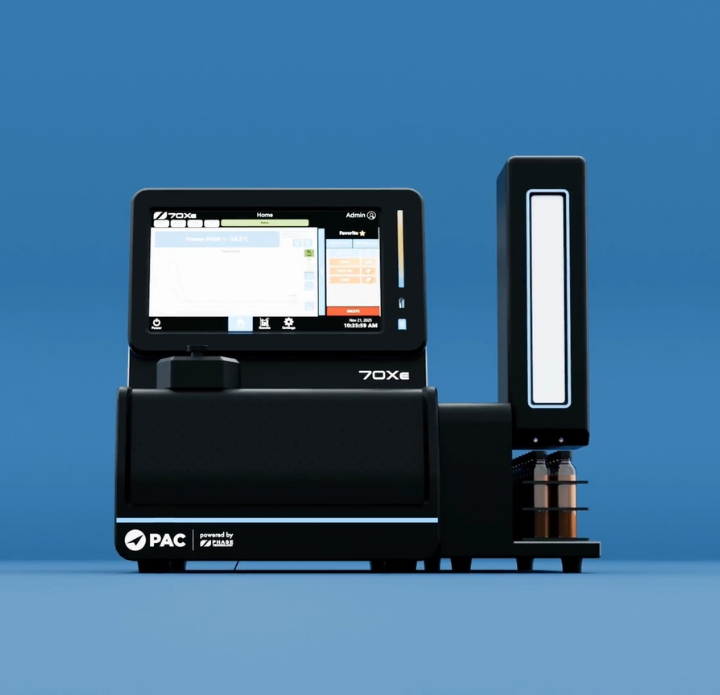

Automatic sample loading with optional 30-position autosampler
Freeze Point:
ASTM D5972 / IP 435 / SH/T 0770 compliant
ASTM D2386 / IP 16 / ISO 3013 equivalent
Cloud Point:
ASTM D5773 / IP 446 compliant
ASTM D2500 / IP 219 / ISO 3015 equivalent
Pour Point:
ASTM D5949 / SH/T 0771 compliant
ASTM D97 / IP 15 / ISO 3016 equivalent
Kinematic Viscosity:
ASTM D7945/ IP 641 / ISO 18335 compliant
ASTM D445 / IP 71 / ISO 3104 equivalent
Density:
ASTM D7777 compliant
ASTM D4052 / IP 365 / ISO 12185 correlation
Cold Properties: Patented Diffusive Light Scattering (DLS)
Viscosity: Constant pressure with horizontal capillary
-100 °C to +70 °C
Operator Time: < 1 minute
Cold Properties + Viscosity + Density: As low as 15 minutes
Viscosity + Density: As low as 10 minutes
Cold Properties: As low as 5 minutes
Integrated Peltier device cooling system, no external cooling bath needed

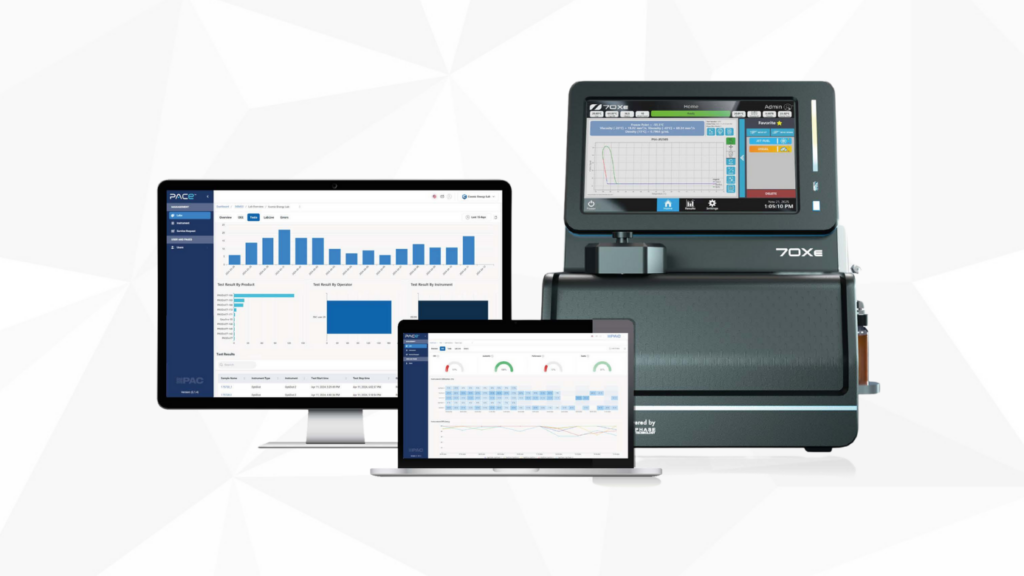

PACe compatibility elevates 70Xe productivity through real-time instrument monitoring, intelligent asset management, and proactive maintenance intelligence. Laboratories gain instant visibility into instrument health, throughput optimization opportunities, and uptime performance across connected systems – turning operational data into actionable insight.
The 70Xe introduces a newly redesigned user interface aligned with the PAC instrument portfolio, delivering a consistent, intuitive user experience that reduces training time and simplifies daily operation.
Each test automatically generates a phase plot, giving users immediate insight into test behavior and enabling rapid identification of anomalies for greater confidence in results.
DRD-601P Dryer desiccant (single pack) for analyzer purging system
DRD-605P Dryer, Desiccant, for Laboratory Analyzer Purging System, Package of 5
DRD-610P Dryer, Desiccant, for Laboratory Analyzer Purging System, Package of 10
DRP-06C Dryer Sacs, Sample, Recommended for Jet Fuel Freeze Point Tests, Package of 600
Screen Protectors, 70Xe Touch Screen, Package of 5
JFA-30G Vials, Glass, 30 mL, for 70Xi-SS and JFA-70xi, Package of 500
LABEL-SL Labels for Label Printer (2 rolls/box) (560 labels/roll)
LABEL-SL5 Labels (5 boxes each box has 2 rolls) for 70V and 70X series label printers
